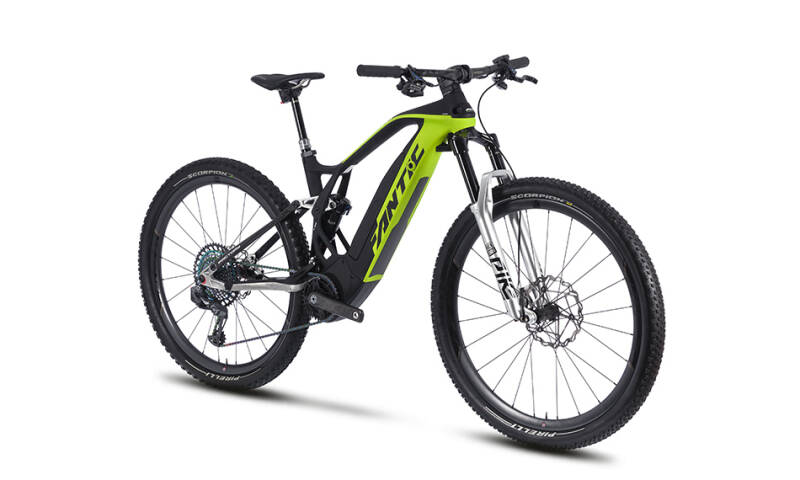

XTF 1.6 Carbon Factory

The lightest trail bike on the market with a 720 Wh battery and a 90 Nm motor. 19.9 kg. Unrivalled handling and agility, endless battery life will allow you to climb and have fun. And repeat as many time as you can.

€ 11790,- (ALL IN)

Engine

The XTF 1.5 CARBON FACTORY is equipped with the NEW BROSE S MAG MOTOR, designed for the most competitive riders. THE BEST ELECTRIC MOTOR FOR E-MTB OF 2019 (*) Its compactness, low weight (only 2.8kg), instant power and more control on steep terrain, no pedaling resistance even with the motor off. Extremely quiet with no vibrations and a maximum torque of 90Nm (the best performing on the market).

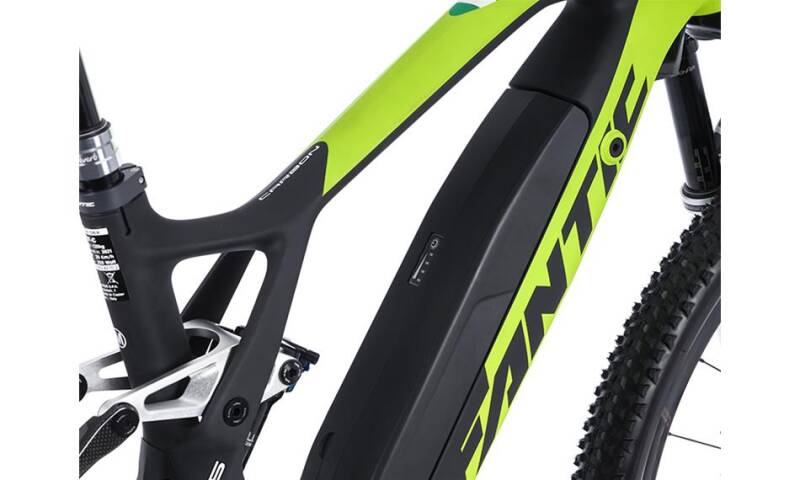

Battery

New 720Wh BATTERY integreted / 369mm compact battery 40 Cells. Rosenberg magnetic connector.Offers a wide life span even when being operated under high loads. we have introduced a dedicated management system to optimise battery consumption.

All

Improving the performance and experience of our Riders has always been our Mission. Fantic designs, develops and engineers all its products with particular attention to design, technology and innovation, without compromise. WE ARE MADE IN ITALY

Technical Information


Motor: Brose S-MAG 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm

Battery: Fantic Integra, Lithium Ion, 36 Volt, 720Wh

Display: Brose-All Round 4 multifunctional display & push-assistance selection unit

Frame: Carbon, Sizes: S - M - L - XL

Fork: RockShox LYRIK ULTIMATE e-bike - 29" 160mm

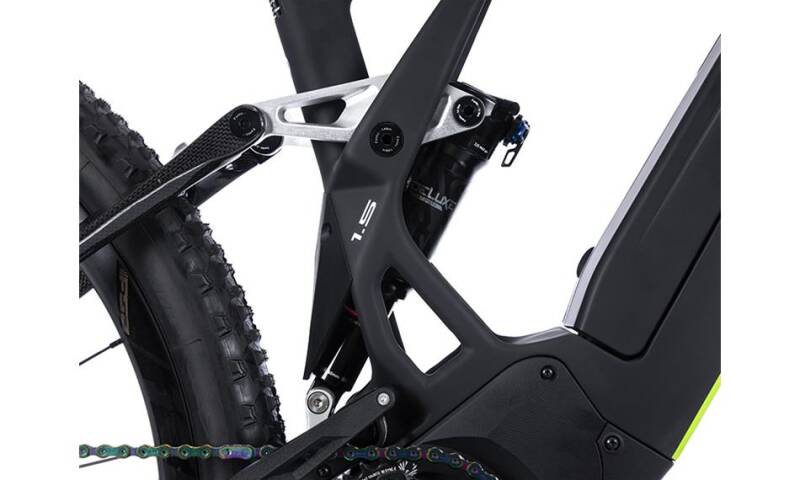

Shock: RockShox DeLuxe ULTIMATE T205x60 Air

Chain rings: FSA 34t Alu

Crank arm: FSA CARBON CK-8685-1/IS

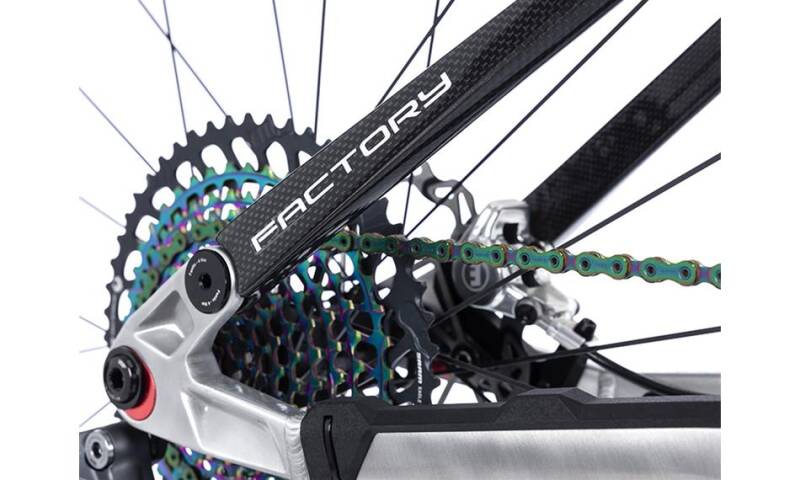

Rear derailleur: Sram XX1-AXS Eagle 12V

Shift Levers: Sram XX1-AXS E-click

Cassette: Sram X-Glide Rainbow 12V, 10-52

Chain: Sram PC 12V Rainbow

Brake (front): Magura MT Trail Carbon 4 Piston disc brake

Brake (rear): Magura MT Trail Carbon 4 Piston disc brake

Disc (front): Braking S3 Battfly, 203mm - 6Hole

Disc (rear): Braking S3 Battfly, 180mm - 6Hole

Tires (front): Pirelli SCORPION ProWall Trail -M- 29"x 2.4

Tires (rear): Pirelli SCORPION ProWall Trail -R- 29"x 2.4

Wheels: FSA KFX Carbon F 29" / R 29"

Handlebar: FSA KFX SIC INTEGRATED Carbon 780mm-31,8 FLAT

Stem: nd /na

Seatpost:  Rockshox Reverb AXS Ø 30.9 S-M(100mm), L(125mm), XL(150mm)

Saddle: Selle Italia SLR Boost Superflow

NOTE(*): *FANTIC MOTOR reserves the right to modify technical caracteristics without prior notice. All images are included for illustrative purposes.Products are subject to change.
