XMF 1.7 Carbon Race

This RACE version of the XMF 1.7 Carbon gives you the freedom to perform your skills as a "Rancing rider", with the right compromise between the lightness of a carbon frame and a high performance components, such as the RockShox LYRIK ULTIMATE e-bike fork - 29" 170mm. With the Fantic 720 Wh battery your adrenaline rush becomes unlimited!

€ 8090,- (ALL IN)


Installed on the XMF 1.7 CARBON RACE is the NEW BROSE S MAG MOTOR, designed for the most competitive riders. THE BEST ELECTRIC MOTOR FOR E-MTB OF 2019 (*) Its compactness, low weight (only 2.8kg), instant power and more control on steep terrain, no pedaling resistance even with the motor off. Extremely quiet with no vibrations and a maximum torque of 90Nm (the best performing on the market).

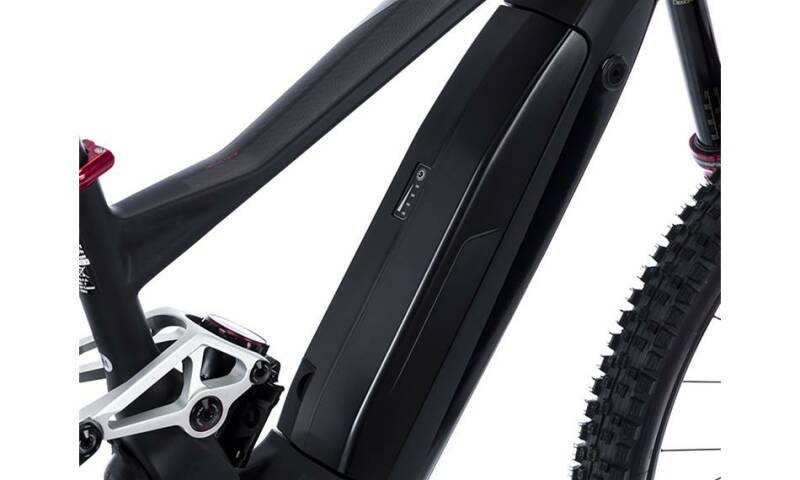

New 720Wh BATTERY integreted / 369mm compact battery 40 Cells. Rosenberg magnetic connector.Offers a wide life span even when being operated under high loads. we have introduced a dedicated management system to optimise battery consumption.

Technical Information

Motor: Brose S-MAG 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm

Battery: Fantic Integra, Lithium Ion, 36 Volt, 720Wh

Display: Brose-All Round 4 multifunctional display & push-assistance selection unit

Frame: Carbon, Sizes: S - M - L

Fork: RockShox LYRIK ULTIMATE e-bike - 29" 170mm

Shock: RockShox SuperDeluxe Select+ T205x60 Air

Chain rings: Sram 34t Steel Eagle

Crank arm: FSA CK-7462/IS - 165mm

Rear derailleur: Sram GX Eagle AXS 12v

Shift Levers: Sram GX Eagle AXS 12v

Cassette: Sram SX Eagle 12V, 11-50

Chain: Sram SX Eagle 12V

Brake (front): Magura MT7 4 Piston disc brake

Brake (rear): Magura MT7 4 Piston disc brake

Disc (front): Braking S3 Battfly, 203mm - 6Hole

Disc (rear): Braking S3 Battfly, 203mm - 6Hole

Tires (front): Vittoria E-MARTELLO 29"x 2.35

Tires (rear): Vittoria E-MARTELLO 27,5"x 2.6

Wheels: FULCRUM E-500

Handlebar: Renthal FATBAR V2 800mm-35 RISE20

Stem: Renthal APEX 40mm-35 RISE6°

Seatpost: Rockshox Reverb Ø 30.9 S-M(100mm), L(125mm)

Saddle: Sella Italia Novus Boost EVO
