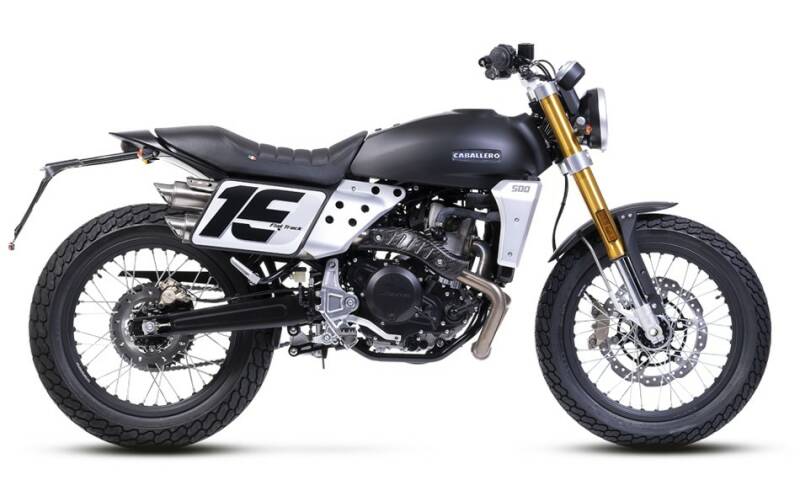

Flat Track 500

GO FAST TURN LEFT… REPEAT This exciting "alternative" way of riding a motorcycle comes straight from the US dirt tracks. This is in fact the very first production flat track inspired motorcycle with 19” street legal dirt wheels, front and rear. The Caballero Flat Track is born to give you a sideways view of life. Flat Track is a very simple style of racing. Jest keep turning left, lap after lap and challenge yourself to achieve the best lap time. Then toss in the mix other riders and the fun begins. Full gas on the straightaway, bend the bike sideways in the corners, keep the maximum speed possible and be fearless



The Fantic Caballero Flat Track 500 is designed to give an adrenaline rush to every move you make. The 19" wheels, a characteristic of the Flat Track discipline, provide greater stability and control in turns, ensuring speed and control. Let your personality take over and let the breeze of your dreams carry you away.

€ 8349,- (ALL IN)

STOCK: ORDER ONLY

Engine

The single-cylinder, 4-valve, liquid-cooled, electronic fuel injection engine is now Euro 5 compliant. It provides a great performance on the asphalt, combined with efficiency on off-road tracks. The ECU control unit has an updated mapping, ensuring an even smoother engine power at all RPMs and also optimising performance in terms of maximum power and torque. The exhaust system is made in Italy by Arrow with twin chrome silencers.







Chassis

The Caballero Flat Track 500 is characterised by a Chrome-molybdenum steel central-tube frame which favours lightness once again, ensuring incredible agility and comfort. The front forks are 41mm upside-down FANTIC FRS, the rear suspension is an adjustable FANTIC FRS. The main feature of Flat Track bikes and this Caballero are the 19" wheels mounted on both the front and rear. This feature provides greater stability and control sideways. On the asphalt and in everyday use, safety is also enhanced in both wet and dry conditions. The 320mm front and 230mm rear wave brake discs, and the disengageable dual-channel Continental ABS make it even easier to use on the track.

Aesthetics

Iconic design, with the same "Caballero" badge on the tank to that of forty years ago. The side number boards display the number 19 (a reference to the characteristic size of the Flat Track wheels). In addition to the matt black colour, the new model year 2021 adds another colour, a new silver to match the darker metallic grey and matt black colouring on the side panels and mudguards.

Technical Information


ENGINE

Homologation: Euro5

Engine: Single cylinder 4 stroke, liquid cooled

Displacement: 449 cc

Max Power detected*: 29,5 kW @ 7100 rpm

Max Torque detected*: 43 Nm @ 6000 rpm

Bore: 94.5 mm

Stroke: 64 mm

Distribution: Single camshaft - 4 valve

Fuel system: Electronic Fuel - throttle body ø 40mm

Starter: Electric

Gears: 6

Clutch: Multi plate wet clutch

Exhaust system: Dual exhaust by ARROW

CHASSIS

Fuel consumption: 4,2 l/100 km

CO2 emission: 97 g/km

Frame: CrMo steel central-tube frame

Swingarm: In steel with variable section and progressive link

Tires: 130/80-19, 140/80-19

Wheels: Spoked with aluminum rims

Brakes: Front floating brake disc ø320mm – Rear brake disc ø230mm

ABS: Continental two-channel ABS (disengageable)

Front suspension: ø41mm upside down

Front suspension travel: 150mm

Rear suspension: rebound damping regulation

Rear suspension travel: 150mm



OVERALL DIMENSIONS

Seat height: 820 mm – optional seat 840mm

Wheelbase: 1425 mm

Length: 2120 mm

Dry weight: 150 kg

Fuel Tank: 12 l
